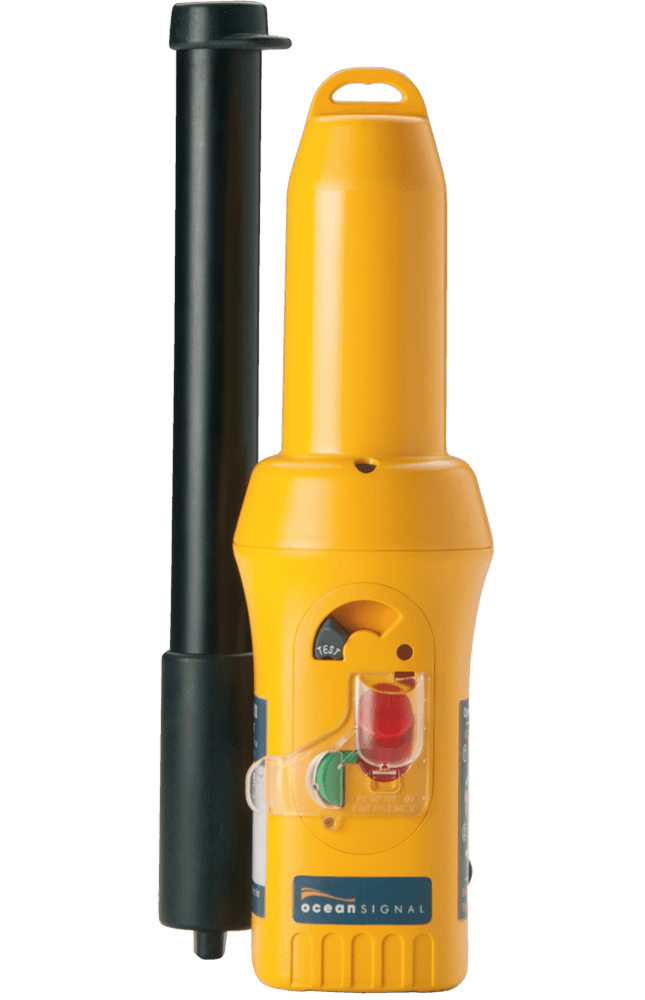

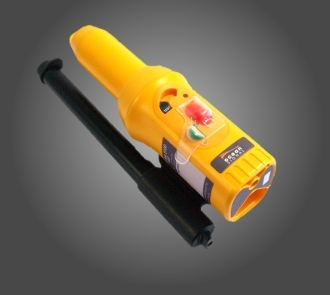

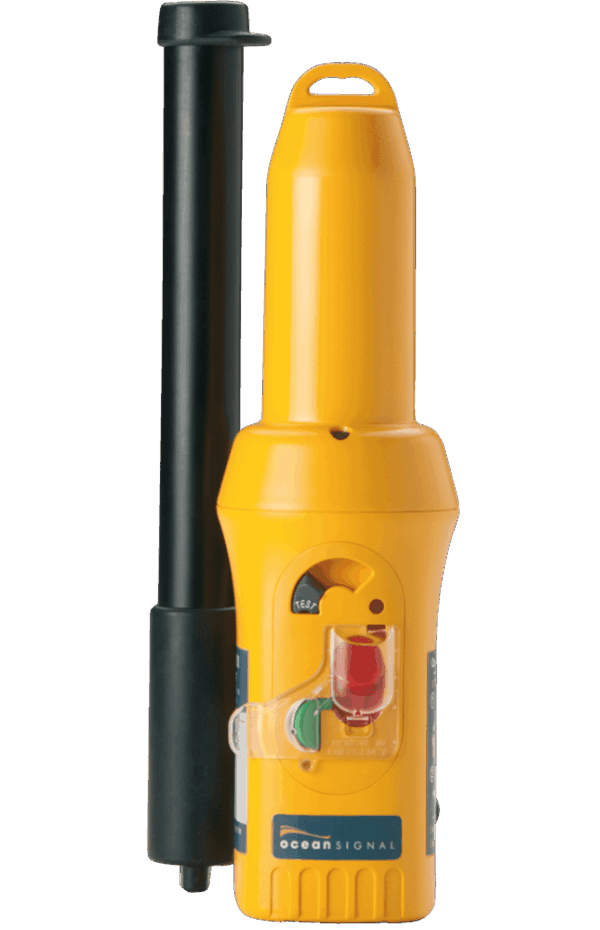

Ocean Signal SafeSea S100 SART with mounting pole

Product overview

The SafeSea S100 SART (Search and Rescue Transponder) is a dedicated radar transponder which complies with IMO SOLAS regulations.

• Superior battery life – even at -20°C
• User replaceable battery
• Non Hazardous battery
• Five year replacement interval
• Compact size for easy liferaft packing
• Supplied complete with telescopic pole and storage bracket

Requirements

• SARTs are required on all IMO SOLAS vessels on international voyages:-
• One on 300-500GRT
• Two if over 500GRT
• One SART per every four liferafts on ro-ro passenger vessels
• Nationally mandated vessels, including fishing vessels, passenger craft, commercial workboats, etc
• Most Super and Mega yachts are required to carry a SART, especially if covered by the MCA code of practice, which is recognised by many countries.
• Voluntary fit vessels will also benefit by carrying a SART

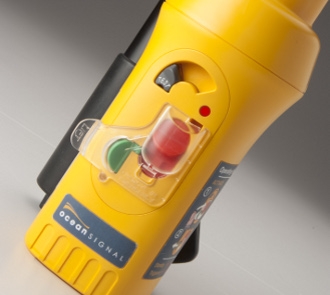

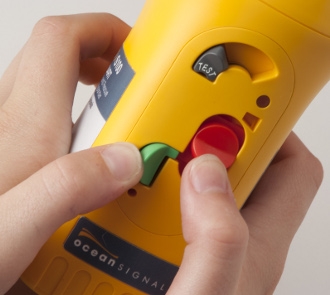

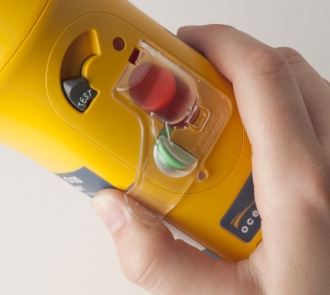

The SafeSea S100 SART is designed to assist in the rescue and recovery of liferafts and survival craft. When switched on, the SART remains in a standby mode until automatically activated by an X Band Radar sweep from any vessel in the vicinity. The SafeSea S100 transmits a series of pulses which are displayed on the ships Radar as a line of dots, providing a bearing to the survival craft. The activation controls are identical to those on the SafeSea E100 EPIRB, making use by unskilled operators much easier. General Frequency range: 9.2-9.5GHz Radiated output power: >26dBm eirp Battery Chemistry: Lithium/Iron Disulfide (Li/FeS2) Operational Life: >96hours standby plus, >12hours operational Battery Replacement Interval: 5years Environmental Operating Temperature Range: -20°C to +55°C Storage Temperature Range: -30°C to +70°C Waterproof: >10metres at +20°C Dimensions Height: 227mm
